What Is Thermostat Voltage? Quick Answer
Thermostat voltage refers to the amount of electrical power your thermostat uses to operate. Most modern home thermostats run on low voltage (24 volts AC). This low voltage is safe for homes and allows your thermostat to communicate with your HVAC system efficiently. It’s different from the high voltage (120 or 240 volts) found in wall outlets or appliances.
Understanding thermostat voltage is important when you’re installing a new smart thermostat or troubleshooting issues with your heating and cooling. Many thermostats will have a C-wire or common wire to supply this continuous 24-volt power. Without enough voltage, your thermostat might not power on, or it could experience intermittent performance problems.
TL;DR:
- Thermostat voltage is the electrical power your thermostat needs.
- Most thermostats use low voltage (24 volts AC).
- This is different from high household voltage.
- A C-wire often provides this power.
- Low voltage can cause performance issues.
Ready to get a clearer picture of your thermostat’s power needs? Below, we’ll walk through exactly what thermostat voltage means for your home’s comfort.

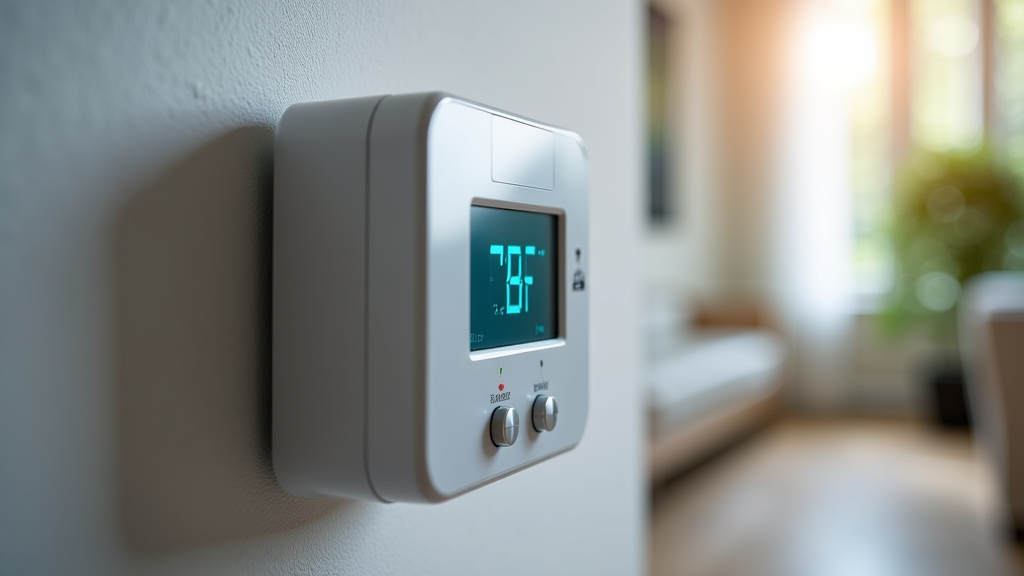

Understanding Your Thermostat’s Power: What Voltage Means for Your Home
The voltage your thermostat uses is essentially the electrical “food” it needs to work. Think of it like the batteries in a remote control, but instead of batteries, it draws power from your home’s wiring. Most modern thermostats operate on a low voltage. This is a key difference from the power that runs your lights or your toaster.
This low voltage is a deliberate design choice for safety and efficiency. It means your thermostat can communicate with your heating and cooling systems without needing the high-power circuits found elsewhere in your home. Understanding this helps when you’re thinking about upgrading or if you encounter a thermostat that’s acting up. You might need a specific type of wiring to get it the power it requires.
Low Voltage vs. High Voltage: What’s the Difference?
You’ve probably seen “voltage” mentioned with appliances and outlets. It’s important to know that thermostat voltage is almost always different from the voltage you encounter with standard household electronics.
Household High Voltage
Your home’s standard electrical outlets typically provide 120 volts. Larger appliances, like your electric dryer or oven, might even use 240 volts. This is a lot of power, designed to run energy-hungry machines. It’s the kind of voltage that can deliver a serious shock if you’re not careful.
This high voltage is delivered through thicker wires and is managed by circuit breakers. It’s not suitable for the delicate electronics inside a thermostat. Imagine trying to power a tiny smartwatch with a car battery – it just wouldn’t work and could cause damage.
Thermostat Low Voltage (24 Volts AC)
Thermostats, on the other hand, typically run on a much lower voltage: 24 volts AC (alternating current). This is considered “low voltage” in the context of home electrical systems. It’s similar to the voltage used by doorbells or some security systems.
Why 24 volts? It’s a sweet spot. It’s enough power for the thermostat’s internal computer and its communication signals. Yet, it’s safe to handle and doesn’t require the heavy-duty wiring of high-voltage systems. This makes installation and maintenance much simpler and safer for homeowners.
Many experts and HVAC professionals agree that 24 volts AC is the standard for modern thermostat operation (HVAC.com).
Where Does the Low Voltage Come From?
Your thermostat doesn’t magically get power. It draws it from your HVAC system itself. This is usually done through a small transformer. This transformer is connected to your home’s main electrical supply but steps down the high voltage to the needed 24 volts AC.
This transformer is often located in your furnace or air handler unit. It’s a critical component that ensures your thermostat always has the power it needs. Without a working transformer, your thermostat would be “starved” for power.
The Role of the C-Wire (Common Wire)
This is where things can get a little technical, but we’ll keep it simple. To get that consistent 24-volt power, many thermostats need a special wire called a C-wire, or common wire.
What Does a C-Wire Do?
Think of the C-wire as the dedicated power line for your thermostat. Traditional thermostats only called for power when they needed to call for heating or cooling. They used a circuit that was completed only when a function was active.
A C-wire provides a continuous path for electricity from the transformer to the thermostat, even when the heating or cooling isn’t running. This constant power supply is essential for modern smart thermostats. They have Wi-Fi radios, bright screens, and advanced features that need power all the time.
Without a C-wire, some smart thermostats might try to “power steal” from your heating or cooling circuits. This can lead to issues like your furnace or AC short-cycling (turning on and off rapidly) or not working at all. Most smart thermostat manufacturers recommend a C-wire for reliable operation (Nest Support).
Do I Need a C-Wire?
Whether you need a C-wire depends on your thermostat and your existing wiring.
- Smart Thermostats: Almost always require a C-wire for full functionality.
- Basic Digital Thermostats: Some might have a battery backup or can operate without a C-wire.
- Older Mechanical Thermostats: Typically did not need a C-wire as they used very little power.
If your current thermostat doesn’t have a C-wire connected, you might need to have one installed. This can sometimes be a DIY project if you’re comfortable with electrical work, or you may need to hire an HVAC technician.
Why Thermostat Voltage Matters for Performance
So, why is understanding thermostat voltage so important? Because incorrect or insufficient voltage can cause a variety of problems.
Symptoms of Low or Incorrect Voltage
When your thermostat isn’t getting the right amount of power, you might notice:
- The screen is blank or dim: The most obvious sign is a thermostat that won’t turn on or has a faint display.
- Intermittent issues: It might work sometimes and then stop, or features might randomly stop functioning.
- HVAC system won’t turn on: The thermostat can’t send the signal to your furnace or AC if it’s not powered correctly.
- Wi-Fi connection problems (for smart thermostats): A lack of consistent power can disrupt the wireless communication.
- “Ghost” calls for heat/cool: In some cases, unstable voltage can cause the system to activate when it shouldn’t.
Research from energy efficiency organizations indicates that a stable 24-volt AC supply is crucial for thermostat reliability (Energy.gov).
Common Thermostat Wiring Configurations
To help you visualize, here’s a look at typical wires and what they do. You’ll often see letters corresponding to functions.
| Wire Label | Function | Voltage Type |
|---|---|---|
| R (or Rh/Rc) | Power (usually 24V AC) | Low Voltage |
| G | Fan | Low Voltage |
| Y | Cooling | Low Voltage |
| W | Heating | Low Voltage |
| C | Common (Continuous Power) | Low Voltage |
You might have separate R wires (Rh for heat, Rc for cool) or a jumper connecting them if your system only uses one power wire. The C-wire is the dedicated power source for many modern devices.
Troubleshooting Voltage Issues
If you suspect a voltage problem, here are a few simple checks you can perform:
- Check your breaker box: Ensure the breaker for your HVAC system hasn’t tripped.
- Inspect your thermostat wiring: Make sure all wires are securely connected to the correct terminals. Loose wires are a common culprit.
- Look for a C-wire: Confirm if you have one connected, especially if you’re installing a smart thermostat.
- Consult your thermostat manual: It will often have specific troubleshooting steps for power-related issues.
If you’re unsure about any of these steps, it’s always best to consult a qualified HVAC professional. They have the tools and expertise to safely diagnose and fix electrical issues.
When to Call a Professional
While many thermostat installations are DIY-friendly, working with electrical wiring can be risky. If you’re uncomfortable or uncertain about your home’s wiring, please don’t hesitate to call an expert. They can ensure your thermostat is installed correctly and safely, protecting both your equipment and your home.
Conclusion
Understanding your thermostat’s voltage is key to ensuring your home comfort system works as it should. You’ve learned that most modern thermostats rely on a safe, low 24-volt AC current, different from your home’s higher voltages. This power often comes through a C-wire, which is especially important for smart thermostats that need continuous energy for their features. If you’re experiencing performance issues, checking the voltage and wiring is a smart first step. If you’re unsure or uncomfortable, a professional HVAC technician is always your best resource for safe and effective solutions.
Frequently Asked Questions
Can I use a high-voltage wire to power my thermostat?
No, you should never use high-voltage wires (like those for outlets) to power your thermostat. Thermostats are designed for low voltage (typically 24 volts AC) and using higher voltage can damage the thermostat and potentially create a safety hazard.
What happens if my thermostat doesn’t have a C-wire?
If your thermostat doesn’t have a C-wire, a smart thermostat may not power on consistently or might experience connectivity issues. Some thermostats can work without one by using battery power or “power stealing,” but this can sometimes lead to system malfunctions.
How do I know if I have the right voltage for my thermostat?
Most thermostats are designed for 24-volt AC power. The voltage is supplied by a transformer in your HVAC system. If your thermostat is working correctly, it’s likely receiving the proper voltage. Issues like blank screens often point to a voltage problem, often related to the C-wire.
Is 24-volt AC the only type of low voltage for thermostats?
While 24-volt AC is the overwhelming standard for residential thermostats, very old or specialized systems might use different low-voltage configurations. For almost all modern homes and smart thermostats, 24 volts AC is what you’ll find.
Can a faulty transformer cause thermostat voltage problems?
Yes, a faulty transformer within your furnace or air handler is a common cause of low voltage issues for your thermostat. If the transformer isn’t stepping down the household voltage correctly, your thermostat won’t receive the necessary 24 volts to operate reliably.
